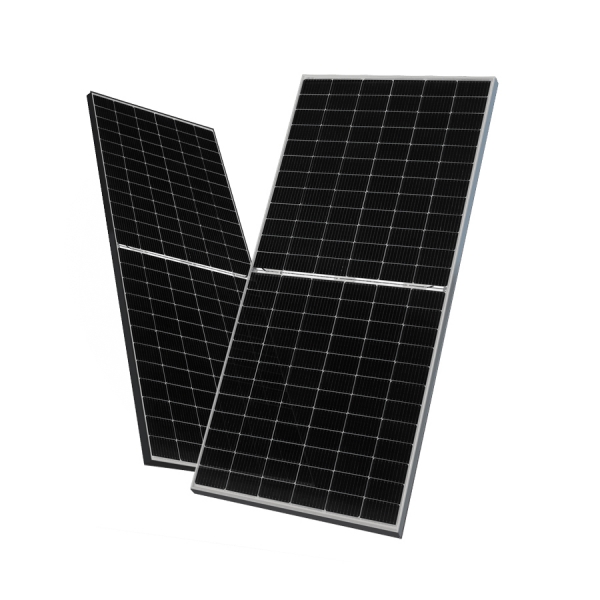

Jinko Tiger Pro BIfacial 530-550W

Tiger Pro 72 HC Bifacial

535 wp

Efficiency 21.16%

PID resistant

30-year linear power warranty

Mechanical Data
Model:
JKM540M-72HL4-TV
Cell Type:
monocrystalline, 182*182MM
Cell number:
144 (6*24)
Dimensions:
2274*1134*35mm
Front glass:
3.2mm, anti-reflection, high transmission, low iron tempered glass
Backsheet:
Tempered glass
Junction box:
Protection class IP68, with bypass diodes
Frame:
Silver anodised aluminium
Connector:
MC4 compatible
Cable:
4mm² Solar cable; (+) ≥400mm, (-) ≥200mm
Standard Test Conditions:
25°C, 1000W/m2
Electrical Data
Model
JKM525M-72HL4-TV
JKM530M-72HL4-TV
JKM535M-72HL4-TV
JKM540M-72HL4-TV
JKM545M-72HL4-TV
Peak Power Watt- Pmax (W)
525
530
535
540
545
Maximum Power Voltage- Vmpp (V)
40.61
40.71
40.81
40.91
41.07
Maximum Power Current- Impp (A)
12.93
13.02
13.11
13.20
13.27
Open Circuit Voltage- Voc (V)
49.27
49.35
49.42
49.49
49.65
Short Circuit Current- Isc (A)
13.64
13.71
13.79
12.87
13.94
Module Efficiency (%)
20.36
20.55
20.75
20.94
21.13
Power Output Tolerance (W)
0 ~ +5
STC
Irradiance 1000W/m², Cell temperature 25℃,  Air Mass AM1.5
Operational Temperature
-40~+85℃
Maximum System Voltage
1500V DC(IEC/UL)
Max Series Fuse Rating
30A
Temperature Coefficient of Pmax
-0.30%/℃
Temperature Coefficient of Voc
-0.28%/℃
Temperature Coefficient of Isc
+0.048%/℃
