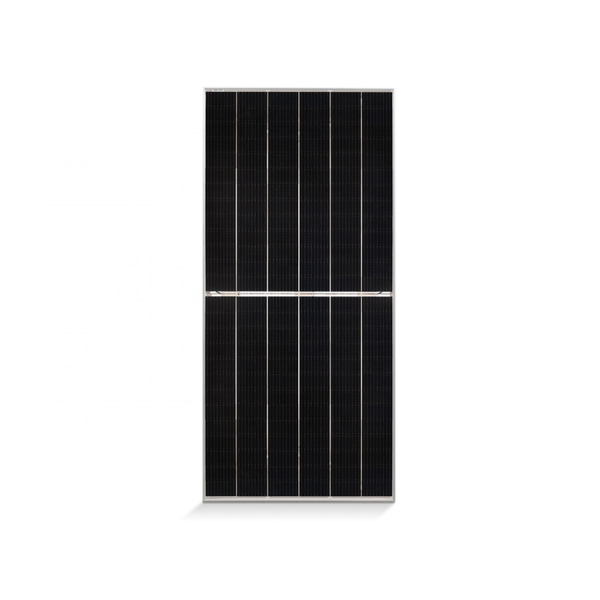

Jinko Tiger Pro 530-550W
Tiger Pro 72HC Monofacial

550 wp

Efficiency 21.33%

PID resistant

25-year linear power warranty

Mechanical Data
Model
JKM550M-72HL4-V
Solar Cells
182mm solar cells, 10BB
Dimension
2274*1134*35mm
Weight
29.4 kg
Glass
3.2mm thickness, high transmission, AR coated tempered glass
Backsheet
white TPT
Frame
silver anodized aluminum alloy
Junction Box
IP68 Rated, 3 diodes
Cables
4.0mm², (+)250mm, (-) 150mm
Connector
MC4 compatible
Electrical Parameters at STC
Model
JKM530M-72HL4-V
JKM535M-72HL4-V
JKM540M-72HL4-V
JKM545M-72HL4-V
JKM550M-72HL4-V
Rated Maximum power (Pmax/W)
530
535
540
545
550
Open circuit voltage (Voc/V)
49.26
49.34
49.42
49.52
49.62
Short circuit current (Isc/A)
13.71
13.79
13.85
13.94
14.03
Maximum power voltage (Vmp/V)
40.56
40.63
40.70
40.80
40.90
Maximum power current (Imp/A)
13.07
13.17
13.27
13.36
13.45
Module Efficiency (%)
20.55
20.75
20.94
21.13
21.33
Power tolerance (%)
0~+5
Temperature Ratings
NOCT (Nominal Operating Cell Temperature)
45℃±2℃
Temperature Coefficient of pmax
-0.350%/℃
Temperature Coefficient of Voc
-0.28%/℃
Temperature Coefficient of Isc
0.048%/℃
Maximum Ratings
Operational Temperature
-40 ~+85℃
Maximum system voltage
1500V DC
Max series fuse rating
25A
