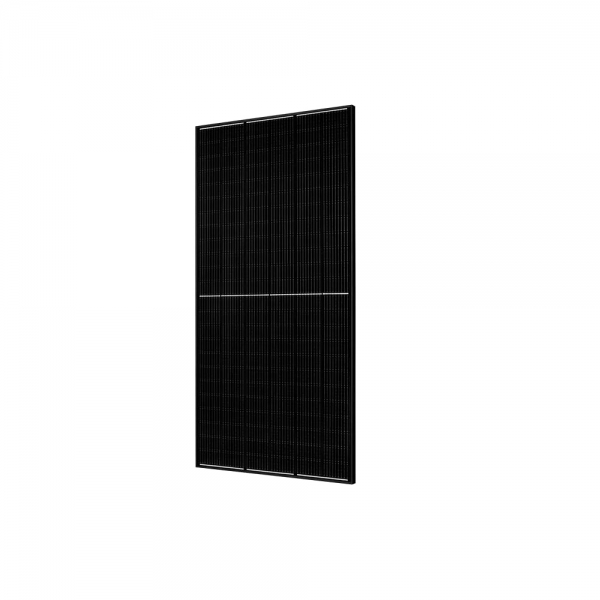

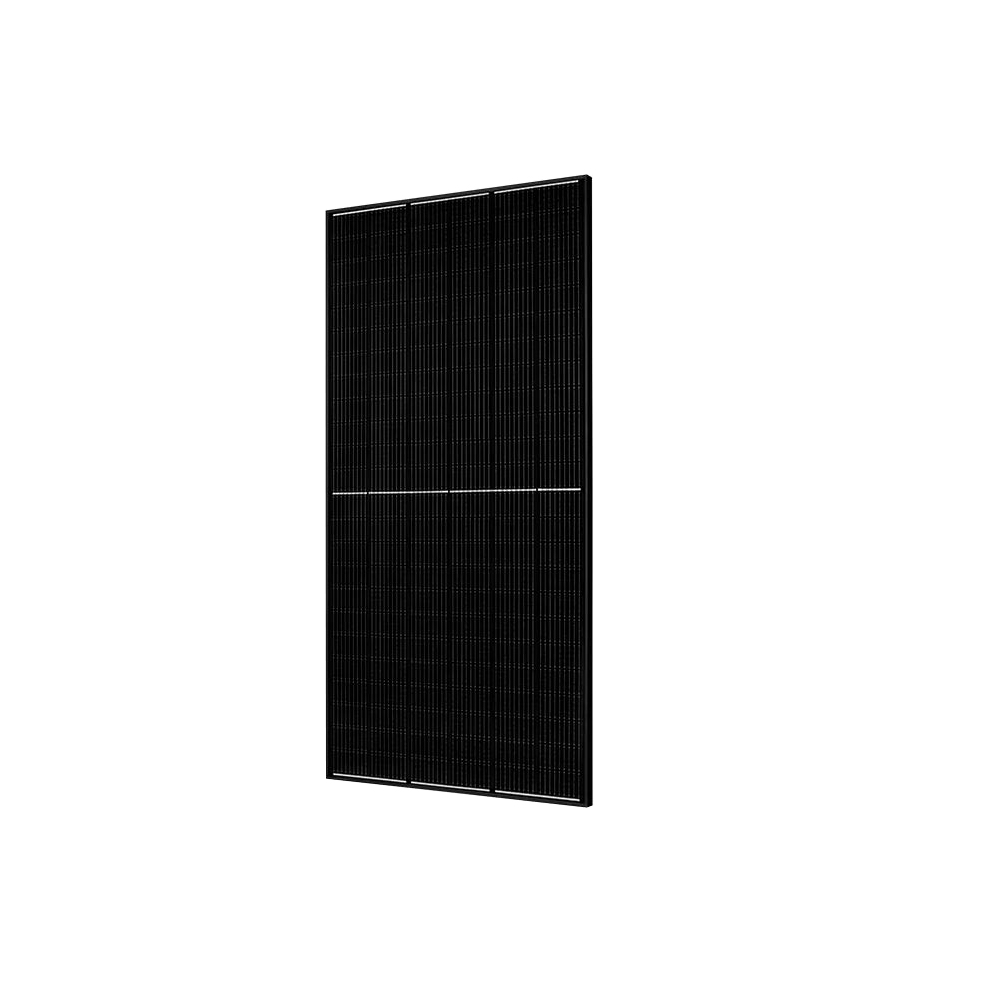

Jinko Tiger All Black 380-400 Watt
Tiger Mono-facial
All Black 380-400 Watt
P type Mono-crystalline 132 Cells
Panel Size 1855×1029×30mm
Electrical Data(STC)
Rated Power Watt- Pmax (W) JKM380M-6RL3-B JKM385M-6RL3-B JKM390M-6RL3-B JKM395M-6RL3-B JKM400M-6RL3-B
Maximum Power - Pmax (W) 380  385  390  395  400
Maximum Power Voltage-Vmp(V) 36.90  37.02  37.15  37.27  37.39
Maximum Power Current- Imp (A) 10.30  10.40  10.50  10.60  10.70
Open Circuit Voltage- Voc (V) 44.22  44.34  44.47  44.59  44.71
Short Circuit Current- Isc (A) 11.12  11.22  11.32  11.42  11.52
Module Efficiency (%) 19.91  20.17  20.43  20.69  20.96
Power Output Tolerance (W) 0 ~ +5
STC Irradiance 800W/m², Ambient temperature 20℃,Wind speed 1m/s
Operational Temperature -40~+85℃
Maximum System Voltage 1500VDC
Max Series Fuse Rating 20A
Temperature coefficient of Pmax -0.35%/℃
Temperature coefficient of Voc -0.28%/℃
Temperature coefficient of Isc 0.048%/℃
Nominal Operating Cell Temperature 45±2℃
