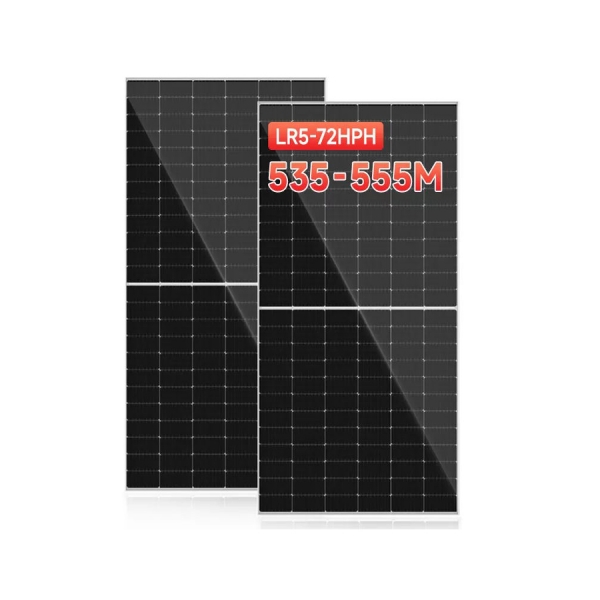

LONGi LR5-72HPH 535-555M
- Based on M10-182mm wafer, best choice for ultra-large power plants
- Advanced module technology delivers superior module efficiency
* M10 Gallium-doped Wafer
* Smart Soldering
* 9-busbar half-cut Cell
- Excellent outdoor power generation performance
- High module quality ensures long-term reliability

MECHANICAL DATA
Solar Cells
Monocrystalline
No. of cells
144  cells
Module Dimensions
2256×1133×35 mm
Weight
27.2kg
Glass
3.2 mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass
Backsheet
White back-sheet
Frame
 Anodized Aluminium Alloy
Junction Box
IP68 rated
Cable
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Portrait: 280/280 mm(11.02/11.02 inches) Landscape: 1400/1400 mm(55.12/55.12 inches)
Connector
MC4 EVO2 / TS4*
ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp)
525W
530W
535W
540W
545W
550W
Maximum Power Voltage-VMPP (V)
41.20
41.35
41.50
41.65
41.80
41.95
Maximum Power Current-IMPP (A)
12.75
12.82
12.90
12.97
13.04
13.12
Open Circuit Voltage-VOC (V)
49.05
49.20
49.35
49.50
49.65
49.80
Short Circuit Current-ISC (A)
13.65
13.71
13.78
13.85
13.92
13.92
Module Efficiency(%)
20.5
20.7
20.9
21.1
21.3
21.5
TEMPERATURE RATINGS
NOCT(Nominal Operating Cell Temperature)
43°C (±2°C)
Temperature Coeffcient of PMAX
- 0.34%/°C
Temperature Coeffcient of VOC
- 0.25%/°C
Temperature Coeffcient of ISC
0.04%/°C
Operational Temperature
-40~+85ºC
Maximum System Voltage
1500V DC (IEC)
Max Series Fuse Rating
30A
