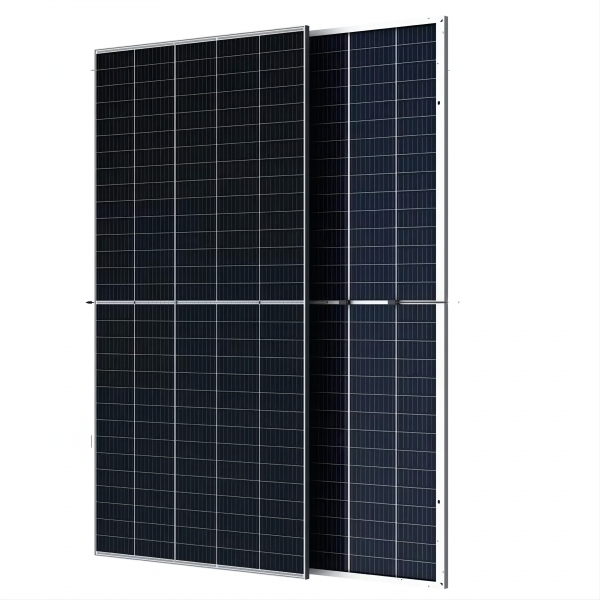

LONGi LR5-72HBD 545-555M
Module Type:LR5-72HBD-550M
Maximum Power (Pmax):550W
Open-circuit Voltage(Voc):49.80V
Short-circuit Current(Isc):13.99A
Maximum Power Voltage(Vmpp):41.95V
Maximum Power Current(Impp):13.12A
Dimensions(W×D×H(mm)):2278*1134*35
Weight:32.6kg
Product Description

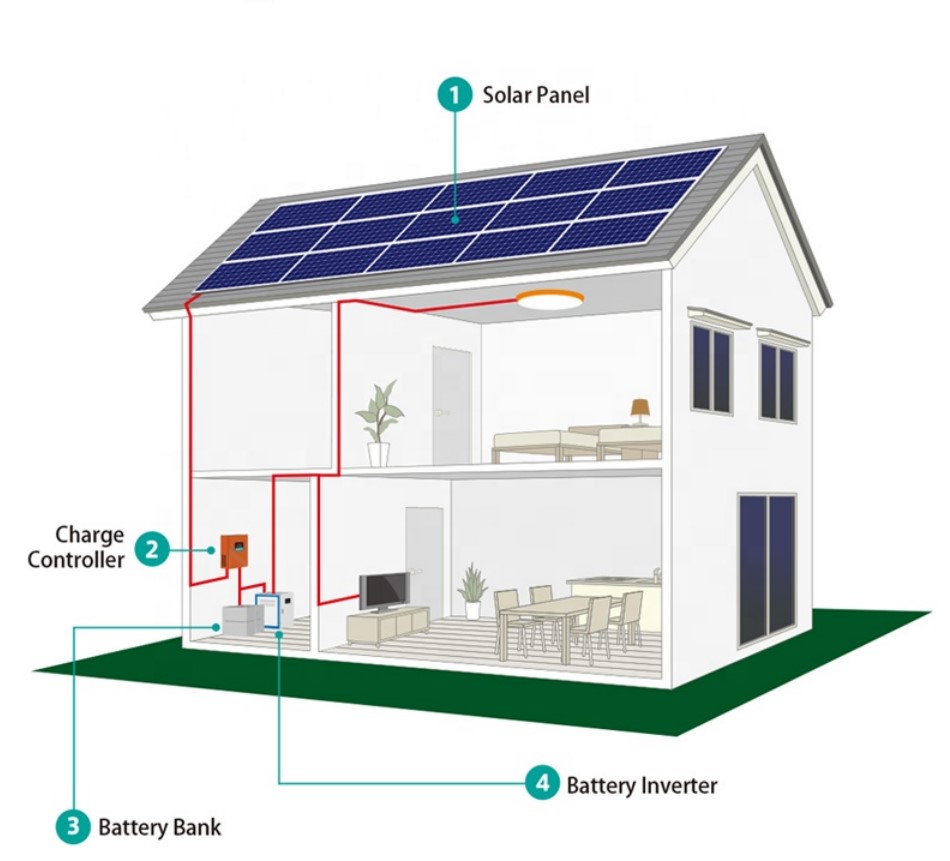

     SSS Solar Panels Could be used for residential solar energy system , combined with inverter, battery to supply the electricity energy for household appliance ,such as refrigerator, oven, air conditioner, electrical car.
Product Name
Solar Panel
Type

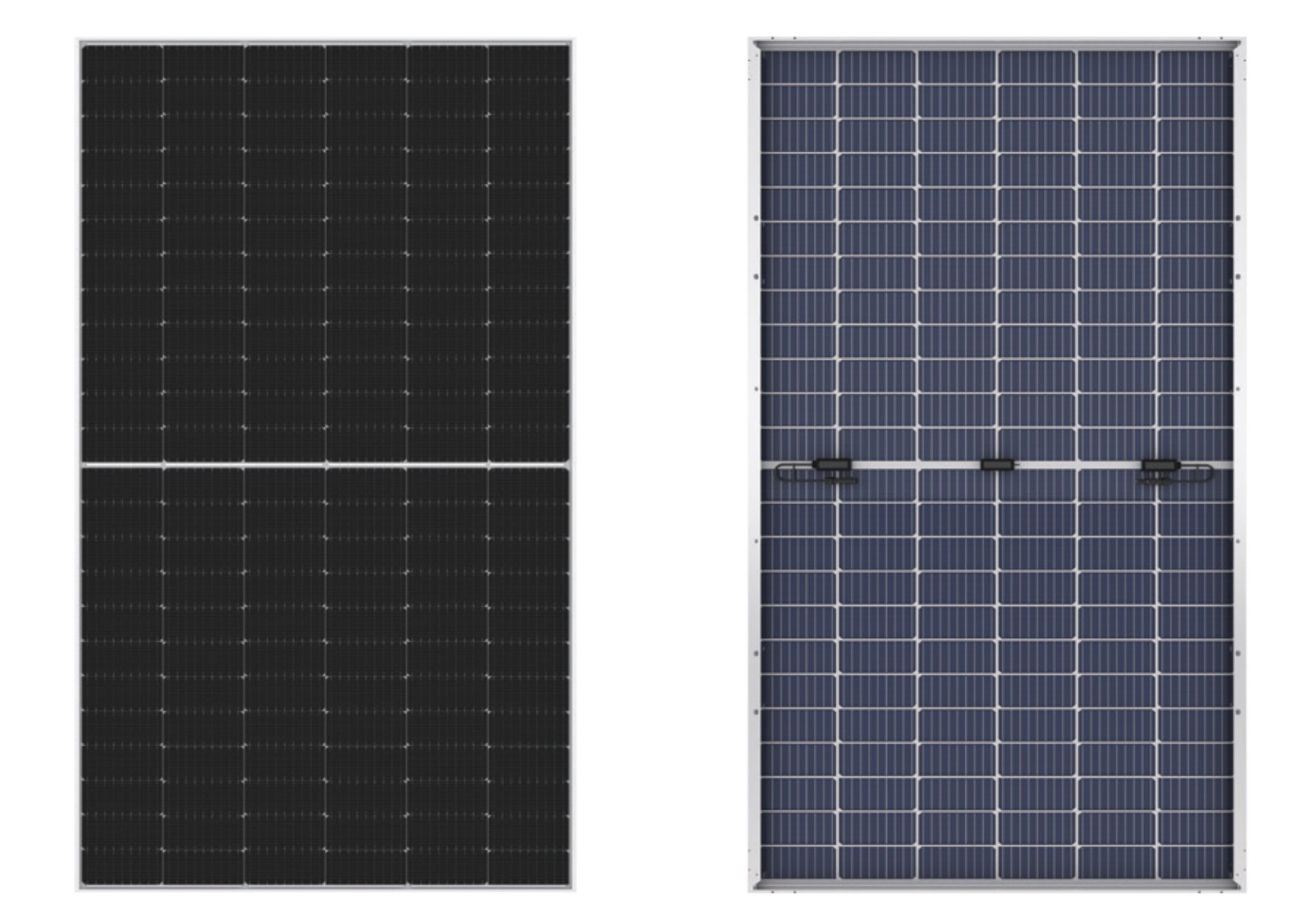

Bifacial Mono Panel
Brand
Longi
Certification
CE/TUV
Model Number
LR5-72 HBD (530-550) M
Warranty
25years
Maximum Power
530W
540W
550W
Open-circuit Voltage
49.2V
49.5V
49.8V
Maximum Power Voltage
41.35V
41.65V
41.95V
Short-circuit Current
13.71A
13.85A
13.99A
Maximum Power Current
12.82A
12.97A
13.12A
Module Efficiency
20.7%
21.1%
21.5%
Power Tolerance
0~+5W
Temperature Coefficient of lsc
0.05%/°C
Temperature Coefficient of Voc
-0.31%/°C
Temperature Coefficient of Pmax
-0.35%/°C
Packing
Woonden box/ Carton box
Packing quantity
31pcs/pallet, 620pcs/40HQ
Stock quantity
1GW
