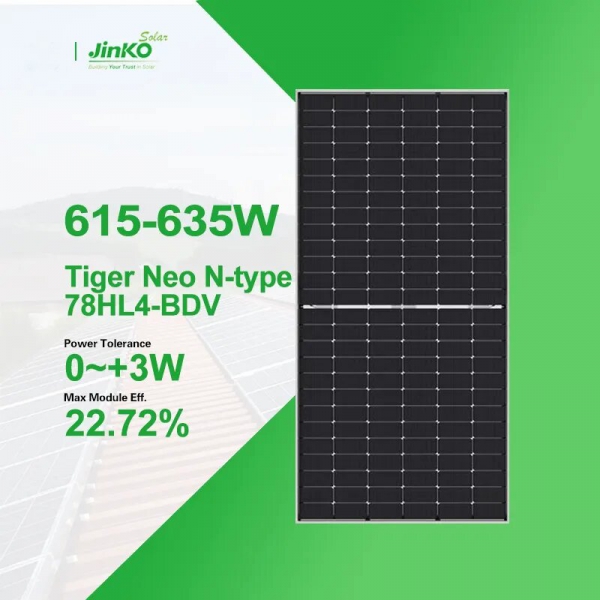

JKM615-635N-78HL4-BDV Jinko bifacial solar panel

Cell Type: NtypeMono-crystalline
No. of cells : 156(78*2)
Dimensions: 2465*1134*30mm
Weight: 34.0kg
Frame: Anodized Aluminium Alloy
Front Glass: 2.0 mm, Anti-Reflection Coating
Back Glass: 2.0 mm, Heat Strengthened Glass
Junction Box: IP68 Rated
Output Cables : TUV1×4.0mm2 (+):290mm,(-):145mmorCustomizedLength
Packing Detail: 36pcs/pallets, 72pcs/stack, 576pcs/ 40‘HQ Container

Model No.

JKM615M-78HL4-BDV

JKM620M-78HL4-BDV

JKM625M-78HL4-BDV

JKM630M-78HL4-BDV

JKM635M-78HL4-BDV

Warranty

Product Warranty

12 Years

Power Warranty

30 Years of 84.95% Output Power

Electrical Data at STC

Maximum Power (Pmax)

615 Wp

620 Wp

625 Wp

630 Wp

635 Wp

Voltage at Maximum Power (Vmpp)

47.20 V

47.37 V

47.54 V

47.70 V

47.86 V

Current at Maximum Power (Impp)

13.03 A

13.09 A

13.15 A

13.21 A

13.27 A

Open Circuit Voltage (Voc)

56.69 V

56.82 V

56.95 V

57.08 V

57.21 V

Short Circuit Current (Isc)

13.68 A

13.74 A

13.80 A

13.86 A

13.92 A

Panel Efficiency

22.0 %

22.2 %

22.4 %

22.5 %

22.7 %

Power Tolerance (Positive)

+ 3 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.39 %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.045 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data

Panel Dimension (H/W/D)

2465x1134x30 mm

Weight

34.0 kg

Cell Number

156

Glass Type

Anti-reflection Coating

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium

Junction Box Protection Class

IP 68

Cable Crossection

4 mm2
