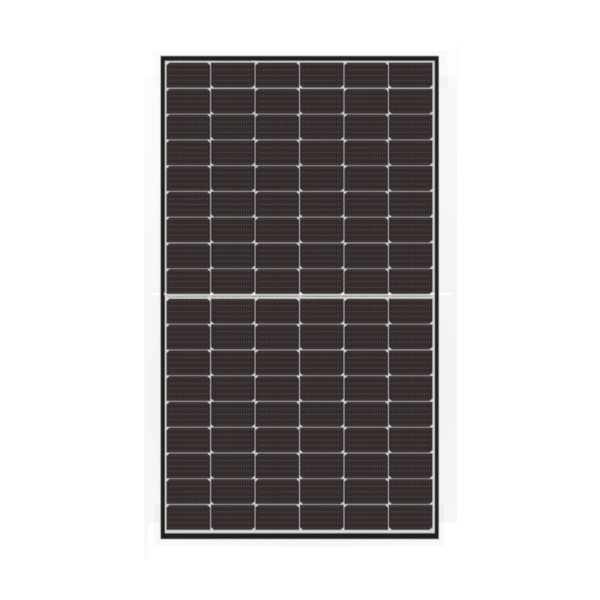

Jinko Tiger Pro 54HC 400-420 Watt
P type Mono-crystalline
JKM400M-420M-54HL4-V
Module Efficiency up to 21.51%
Panel Size 1722×1134×30mm
Electrical Data
Model
JKM400M-420M-54HL4-V
Maximum Power - Pmax (W)
400
405
410
415
420
Open circuit voltage - Voc (V)
36.98
37.06
37.14
37.31
37.43
Short circuit current - Isc (A)
13.78
13.85
13.92
14.01
14.12
Maximum power voltage - Vmp (V)
30.42
30.52
30.62
30.79
30.91
Maximum power current - Imp (A)
13.15
13.27
13.39
13.48
13.59
Module efficiency (%)
20.48
20.74
21.00
21.25
21.51
Temperature Ratings
Temperature Coefficient of Isc
0.048%/℃
Temperature Coefficient of Voc
-0.28%/℃
Temperature Coefficient of Pmax
-0.35%/℃
Maximum Ratings
Maximum system voltage
1000/1500VDC (IEC)
Operational Temperature
-40℃~+85℃
Max Series Fuse Rating
25A
