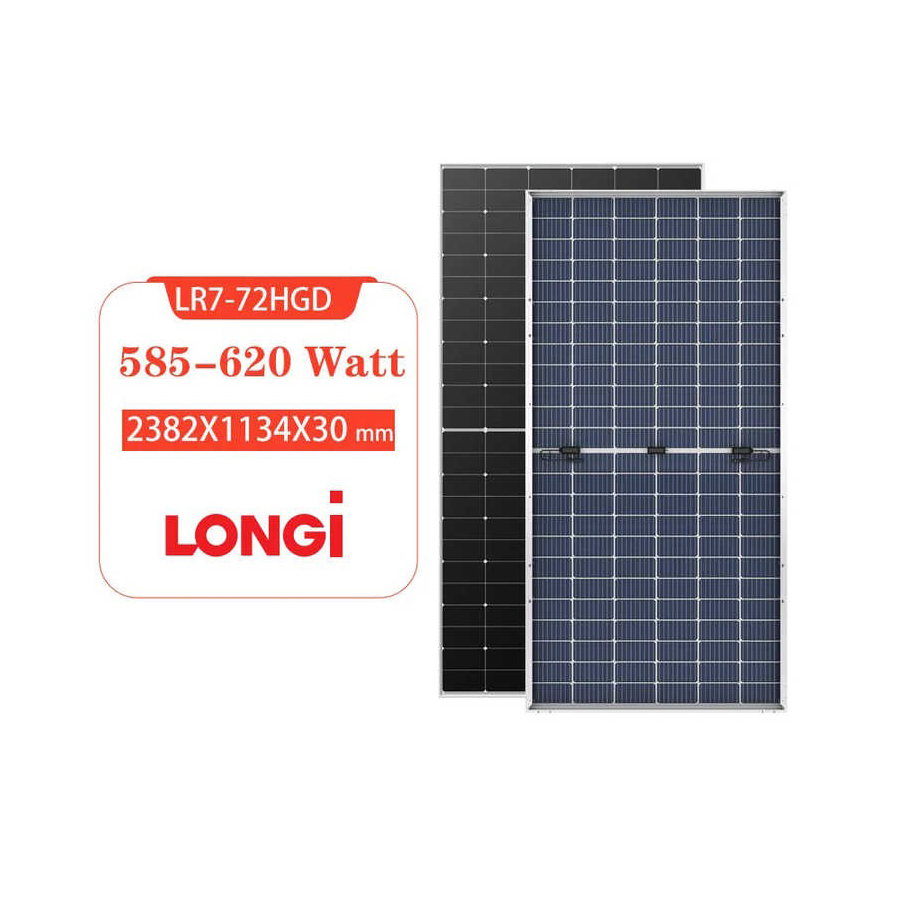

Hi-MO7 LR7-72HGD 585-620W
High-performance PV modules for utility power plants
Advanced HPDC cell technology delivers superior moduleefficiency and power
High bifaciality and excellent power temperature coefficientachieves high energy yield
LONGi lifecycle quality ensures long-term performance

Product Description

Module Type:LR7-72HGD 585-620M
585
590
595
600
605
610
615
620
Maximum Power (Pmax/W)
585
590
595
600
605
610
615
620
Open Circuit Voltage (Voc/V)
52.01
52.12
52.23
52.34
52.44
52.55
52.66
52.77
Short Circuit Current (lsc/A)
14.29
14.37
14.45
14.53
14.61
14.69
14.77
14.85
Voltage at Maximum Power (Vmp/V)
43.57
43.68
43.79
43.9
44
44.11
44.22
44.33
Current at Maximum Power (Imp/A)
13.43
13.51
13.59
13.67
13.75
13.83
13.91
13.99
Module Efficiency(%)
21.7
21.8
22
22.2
22.4
22.6
22.8
23
Operating Parameters
Operational Temperature
-40°C - +85°C
Power Output Tolerance
0-3%
Maximum System Voltage
DC1500V (IEC/UL)
Maximum Series Fuse Rating
30A
Nominal Operating Cell Temperature
45±2°C
Protection Class
Class II
Bifaciality
80±5%
Fire Rating
Ultype 29 IEC Class C
Mechanical Loading
Front Side Maximum Static Loading
5400Pa
Rear Side Maximum Static Loading
2400Pa
Hailstone Test
25mm Hailstone at the speed of 23m/s
Temperature Ratings (STC)
Temperature Coefficient of lsc
+0.045%/°C
Temperature Coefficient of Voe
-0.230%/°C
Temperature Coefficient of Pmax
-0.280%/°C
